Repair Procedures: Disassembly

Disconnect the M-terminal (A) on the magnet switch assembly.

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the 2 screws (A), detach the magnet switch assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the through bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

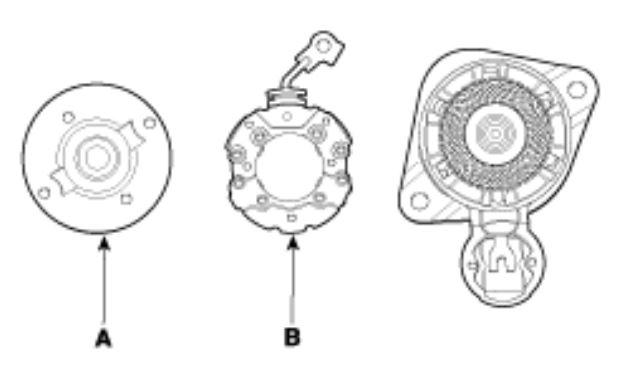

Remove the rear bracket (A) and brush holder assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

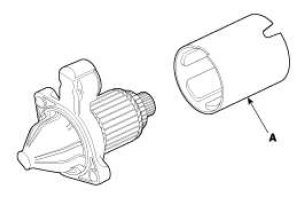

Remove the yoke (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the packing (A), lever plate (B), lever (C) and the armature (D).

Courtesy of HYUNDAI MOTOR AMERICA
Press the stopper (A) using a socket (B).

Courtesy of HYUNDAI MOTOR AMERICA
After removing the stop ring (A) using stopper pliers (B).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the stop ring (B), stopper (A), overrunning clutch (C) and armature (D).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).

Courtesy of HYUNDAI MOTOR AMERICA
