Repair Procedures: Installation

CAUTION:

When you need calibration
- Replace MFC with a new one
- MFC is removed and mounted
- Windshield glass changed
- MFC coupler of the windshield glass is deformed

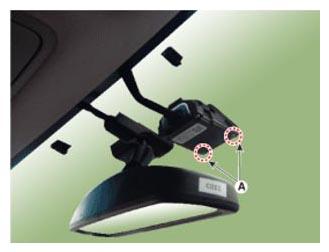

Align the reference point at alignment point (A) and align MFC.

Courtesy of HYUNDAI MOTOR AMERICA

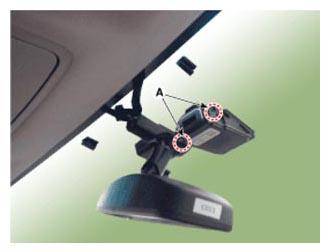

Apply force to lock position (A) to complete mounting.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Fully assembly so that you can hear a 'clicking' sound when assembling.
Connect the MFC unit connector.
Install the MFC cover.
Connect the negative (-) battery terminal.
