Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

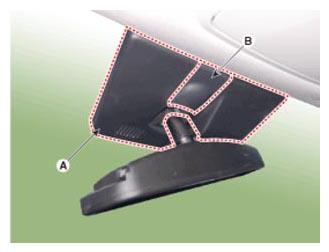

  2. Remove the MFC unit cover (A).
    G12645622Courtesy of HYUNDAI MOTOR AMERICA

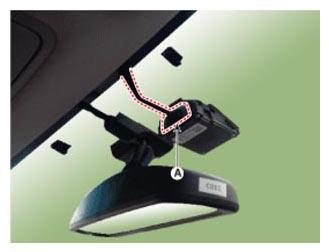

  3. Disconnect the MFC unit connector (A).
    G12645623Courtesy of HYUNDAI MOTOR AMERICA

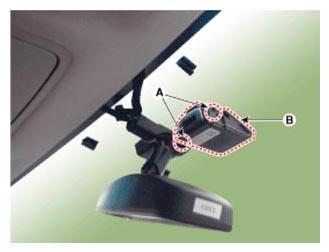

  4. Separate the fixed points (A) of coupler, remove the MFC (B).
    G12645624Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When separate the fixed points, be careful not to damage it.
