Components And Components Location: Components

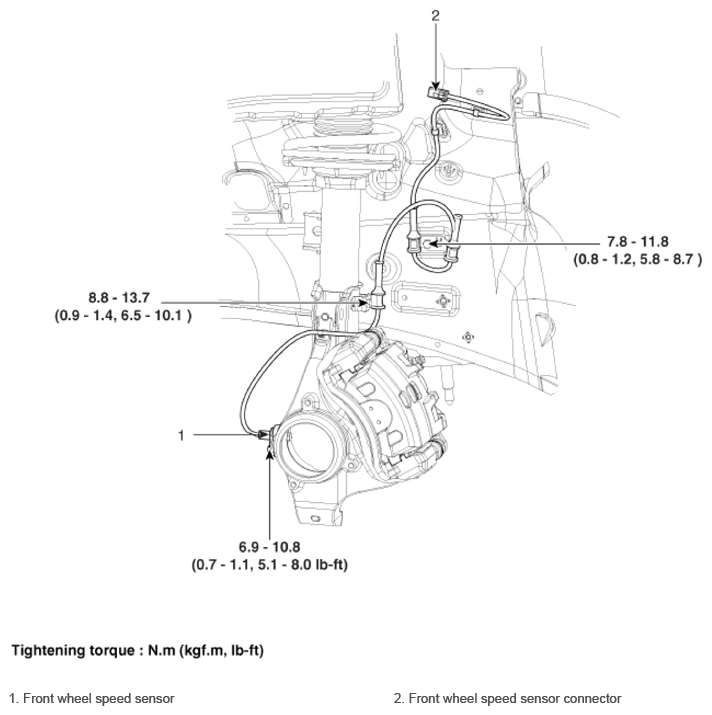

Fig 1: Locating Front Wheel Speed Sensor Components With Torque Specification
G12644561Courtesy of HYUNDAI MOTOR AMERICA
