Repair Procedures: Removal

Remove the Front Bumper Cover.
(Refer to Body - "FRONT BUMPER COVER ")
Remove the Horn (A) after disconnecting the connector (B) and loosening the Mounting Bolt.

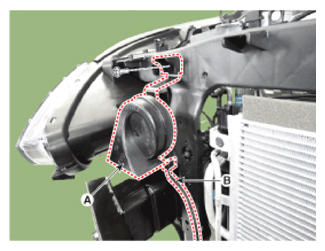

[High-Pitch Horn]

Courtesy of HYUNDAI MOTOR AMERICA

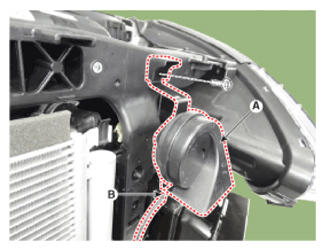

[Low-Pitch Horn]

Courtesy of HYUNDAI MOTOR AMERICA
