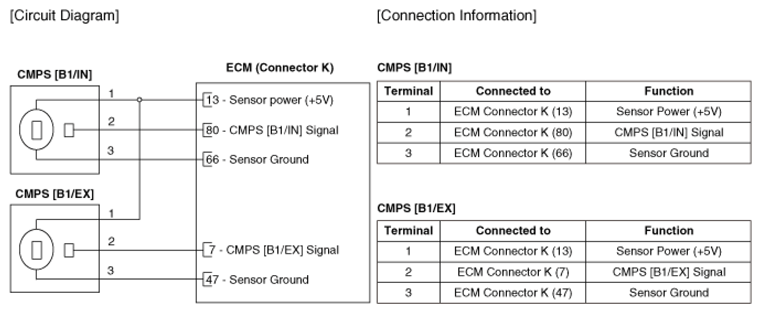

Home › Hyundai › 2018 › Elantra GT Base, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › [A/T] › Notes
