Repair Procedures: Installation
CAUTION:
- Do not use already used injector fixing clip again.
CAUTION:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. In this case, use it after inspecting.
CAUTION:
- Apply engine oil to the injector O-ring.
- Do not use already used injector O-ring again.
CAUTION:
- Do not use already used bolt again.
CAUTION:
- When insert the injector, be careful not to damage the injector tip.
CAUTION:

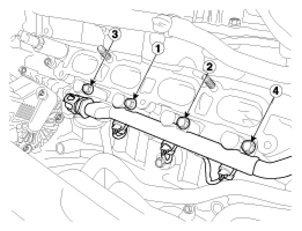

- When tightening the delivery pipe installation bolts, tighten them in accordance with the order ( 1 → 2 → 3 → 4) after tightening with hand-screwed torque.
- Install in the reverse order of removal.
Delivery Pipe Installation Bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
High Pressure Fuel Pipe Installation Nut:
26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb-ft)
