Repair Procedures: Removal

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.

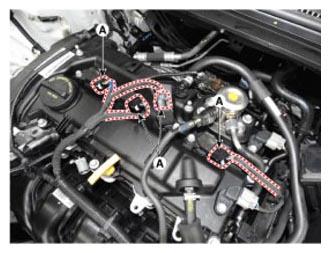

  3. Disconnect the ignition coil connectors (A).
    G12646304Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G12646305Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the ignition coil (A).
G12646306Courtesy of HYUNDAI MOTOR AMERICA
