Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • When replacing the ECM, the vehicle equipped with immobilizer must be performed the procedure below.

[In The Case Of Installing Used ECM]
  1. Perform "Neutral Mode" procedure with KDS/GDS.

    (Refer to Body Electrical System - "IMMOBILIZER SYSTEM ")

  2. Insert the key and turn it to the IGN ON and OFF position. Then the ECM key register process is completed automatically.

[In The Case Of Installing New ECM]
  • Insert the key and turn it to the IGN ON and OFF position.

    Then the ECM key register process is completed automatically.

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the ECM Connector (A).

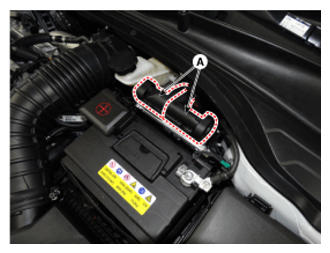

    G12643358Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  4. Remove the installation bolts (A) and then remove the ECM (B).

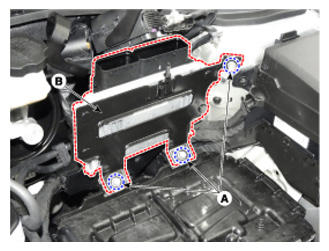

    G12643359Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the ECM (B) after removing 4 nuts (A) from the bracket.

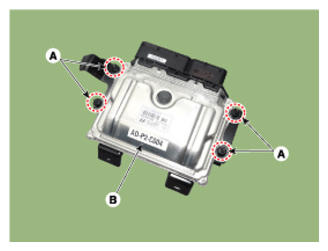

    G12643360Courtesy of HYUNDAI MOTOR AMERICA
