Heated Steering Wheel Control Module (Body Control Module (BCM))

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

  3. Remove the Smart Key Unit.

    (Refer to Body - "SMART KEY UNIT ")

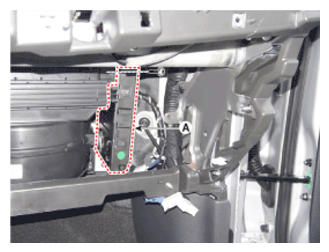

  4. Disconnect the Body Control Module Connectors (A).
    G12644124Courtesy of HYUNDAI MOTOR AMERICA

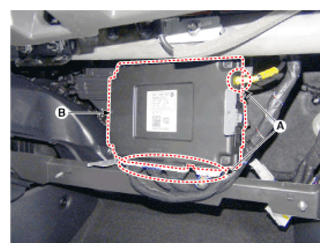

  5. Disconnect the body control module connectors (A) and then remove the BCM (B).
    G12644125Courtesy of HYUNDAI MOTOR AMERICA
