Repair Procedures: Disassembly

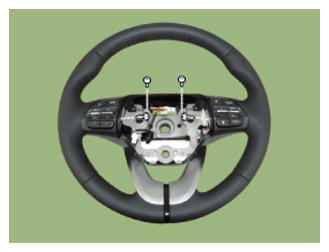

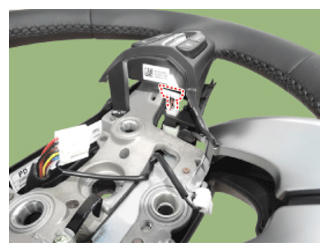

- Loosen the screw.

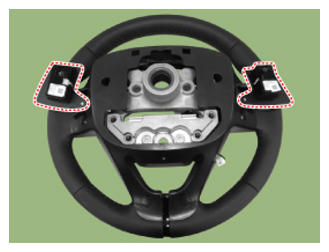

- Remove the paddle shift switch.

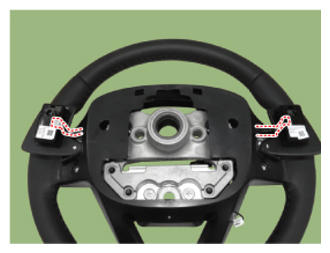

- Disconnect the connector and then remove the switch.

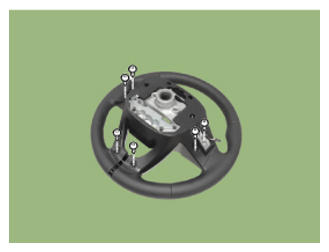

- Loosen the screw and then remove the lower cover.

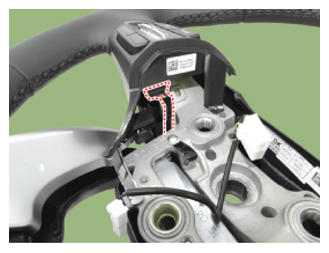

- Disconnect the remote control switch connector.

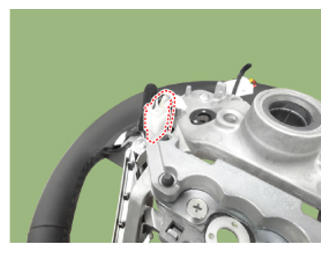

- Disconnect the heated steering wheel connector.

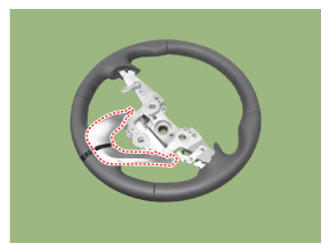

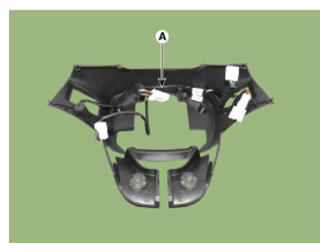

- Remove the wiring (A).

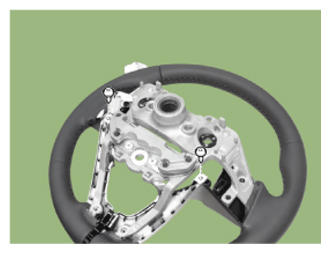

- Loosen the screw and then remove the remote control switch.
- Remove the steering upper cover.
- To reassembly, reverse the disassembly procedure.
