Automatic Transaxle Control System - 2.0L
›
Inhibitor Switch
›
Repair Procedures
›
Inspection
›

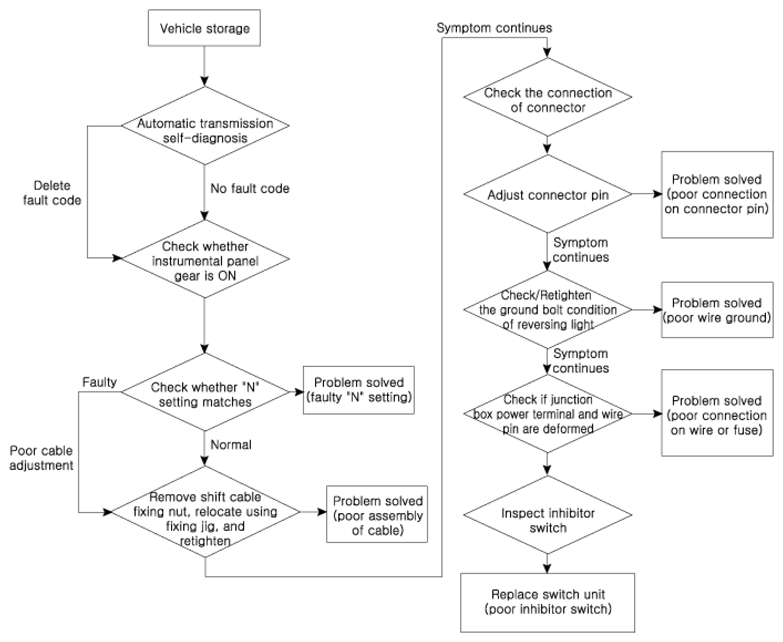

Inspection Flow Of The Inhibitor Switch
Inspection Flow Of The Inhibitor Switch
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
