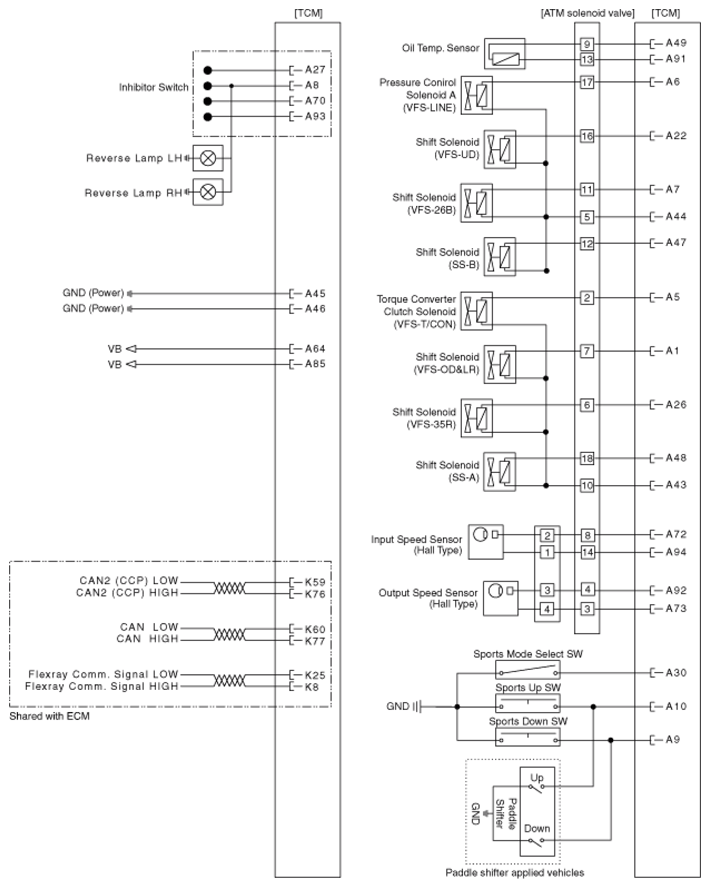

Circuit Diagram

WARNING: This page is about a different variant/trim than selected.
G12646914Courtesy of HYUNDAI MOTOR AMERICA

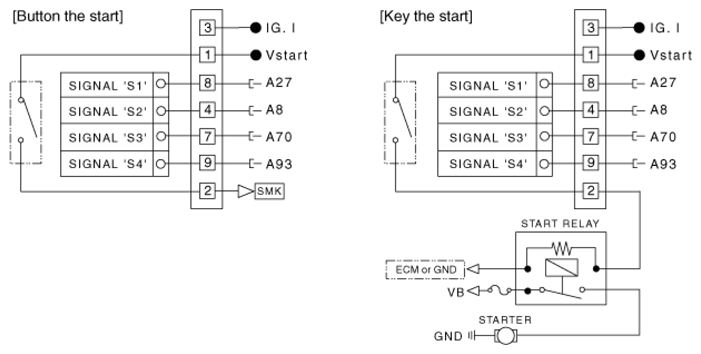

[Inhibitor Switch]

G12646915Courtesy of HYUNDAI MOTOR AMERICA
