Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the glove box upper cover assembly.
(Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

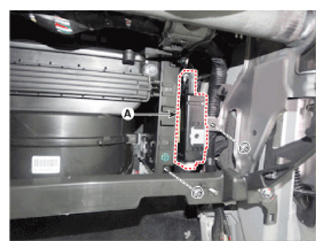

- Remove the smart key unit (A) after loosening the mounting nuts.
- Disconnect the smart key unit connectors (A).
