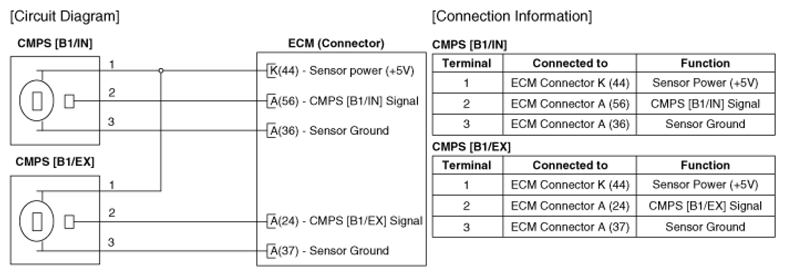

Home › Hyundai › 2018 › Elantra GT Sport, Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
