Home › Hyundai › 2018 › Elantra GT Sport, Standard Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Camshaft Position Sensor (CMPS) › Troubleshooting › Waveform

Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

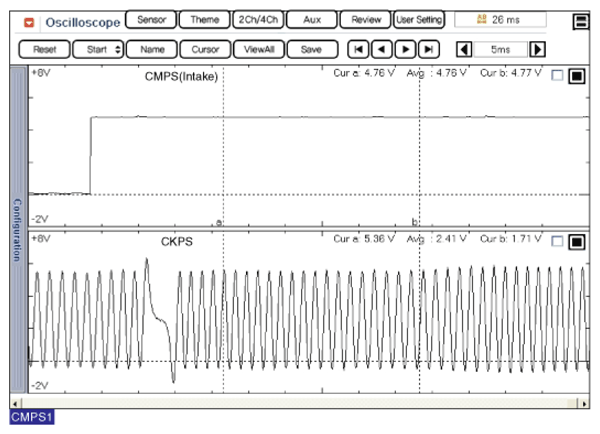

G12643400Courtesy of HYUNDAI MOTOR AMERICA

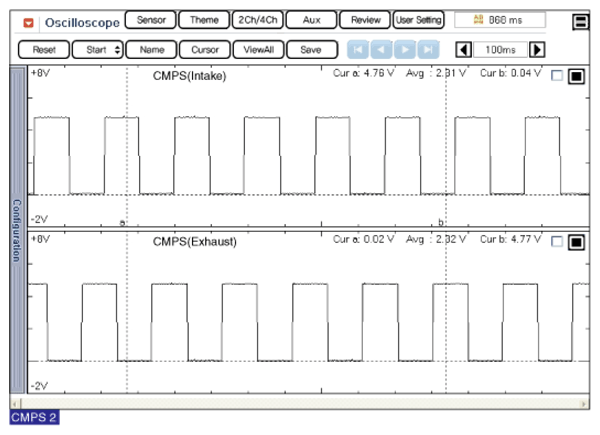

G12643401Courtesy of HYUNDAI MOTOR AMERICA
