Components And Components Location: Components

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

[UII 1.6]

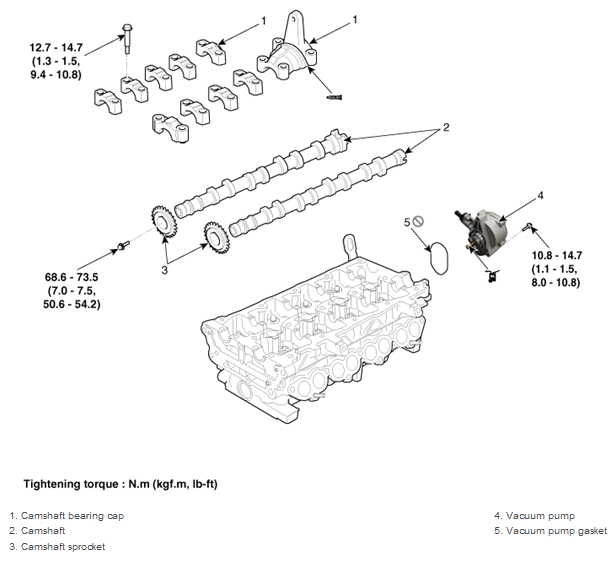

Fig 1: Vacuum Pump Components With Torque Specifications (UII 1.6)

Courtesy of HYUNDAI MOTOR AMERICA
