Component Location

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

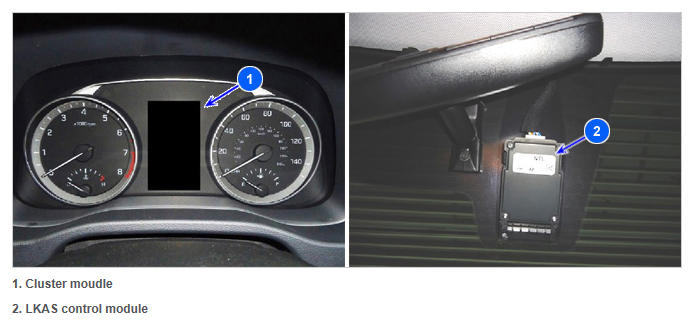

Fig 1: Cluster Module And Lane Keeping Assist System Control Module

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: LKAS: Lane Keeping Assist System
