Section 244 (Supplemental Restraint System Control Module And Sensors)
›
Front Impact Sensor (FIS)
›
Components And Components Location
›
Components
Components And Components Location: Components
WARNING:
This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

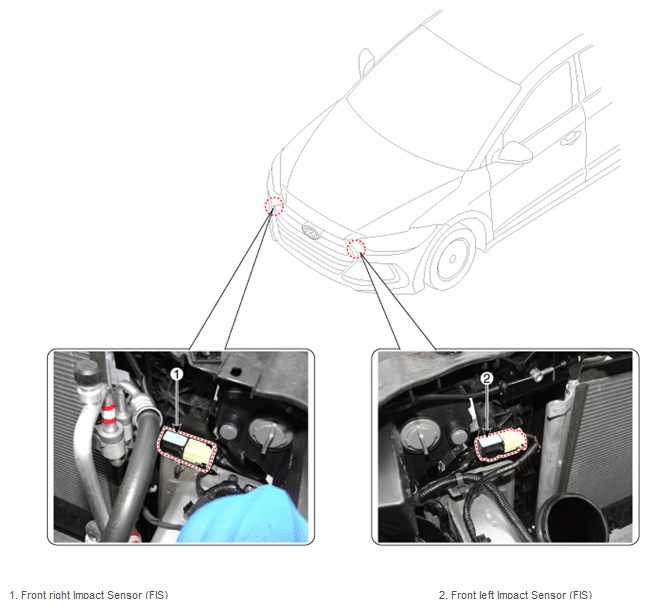

Fig 1: Front Impact Sensor Components
Courtesy of HYUNDAI MOTOR AMERICA
