BSD Unit Alignment

WARNING: This page is about a different car, the 2017 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using GDS.
Select "BSD Radar Calibration" procedure in BSD system.

Fig 1: Scantool Display - Vehicle S/W Management (BSD Radar Calibration)
Courtesy of HYUNDAI MOTOR AMERICA
Perform the "BSD Radar Calibration" procedure according to the GDS screen message.

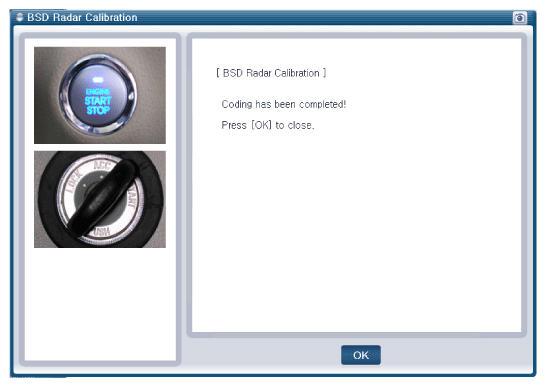

Fig 2: Scantool Display - BSD Radar Calibration (Coding Completed)

Courtesy of HYUNDAI MOTOR AMERICA
