Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

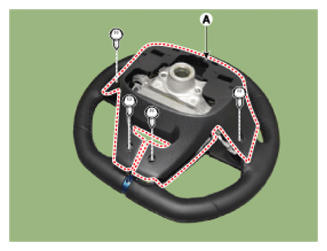

  3. Remove the steering back cover (A).
    G12725857Courtesy of HYUNDAI MOTOR AMERICA

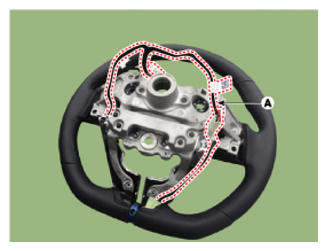

  4. Remove the steering remote control connector (A).
    G12725858Courtesy of HYUNDAI MOTOR AMERICA

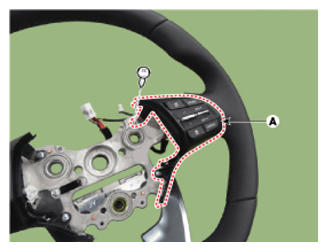

  5. Remove the steering remote control (A), after loosening the screws.
    G12725859Courtesy of HYUNDAI MOTOR AMERICA
