Repair Procedures: Inspection

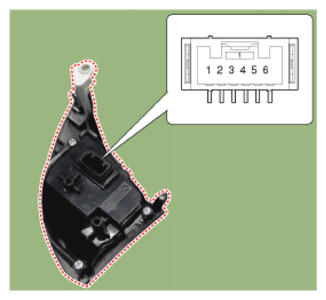

Remove the cruise control switch.

Courtesy of HYUNDAI MOTOR AMERICA

Measure resistance between terminals on the control switch when each function switch is ON. (switch is depressed)

Function switch	Terminal	Resistance (± 5%)
CANCEL	2-3	330Ω
SET<-)	2-3	550Ω
RES {+)	2-3	880Ω
CRUISE	2-3	1.44 kΩ
SCC	3-5	5.54 kΩ

If not within specification, replace switch.
