Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

  3. Remove the steering back cover (A).
    G12725887Courtesy of HYUNDAI MOTOR AMERICA

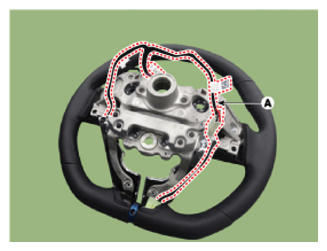

  4. Remove the steering remote control connector (A).
    G12725888Courtesy of HYUNDAI MOTOR AMERICA

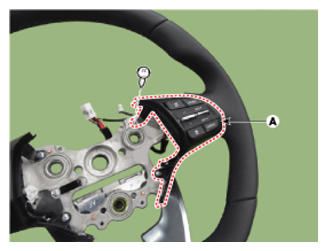

  5. Remove the steering remote control (A), after loosening the screws.
    G12725889Courtesy of HYUNDAI MOTOR AMERICA
