Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

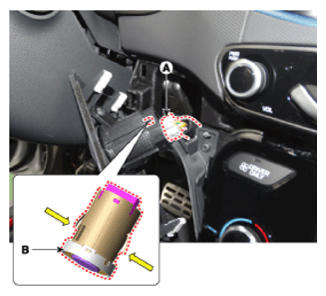

  3. Remove the start/stop button (B) after disconnect the connector (A).
    G12732033Courtesy of HYUNDAI MOTOR AMERICA
