Home › Hyundai › 2018 › Ioniq Plug-In Hybrid › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System (PHEV) › Air Cleaner › Components And Components Location › Components

Components And Components Location: Components

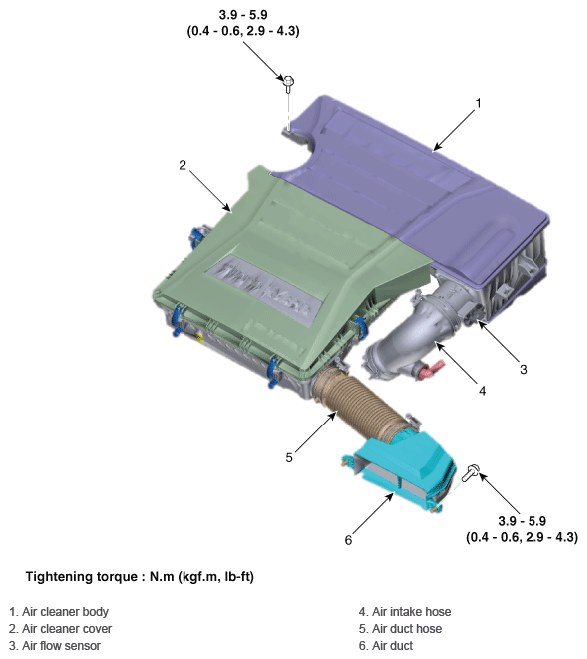

Fig 1: Air Cleaner Components With Torque Specification
G12725711Courtesy of HYUNDAI MOTOR AMERICA
