Home › Hyundai › 2018 › Ioniq Plug-In Hybrid › Repair and Diagnosis › Engine Mechanical › Intake And Exhaust System (PHEV) › EGR Cooler › Components And Components Location › Components

Components And Components Location: Components

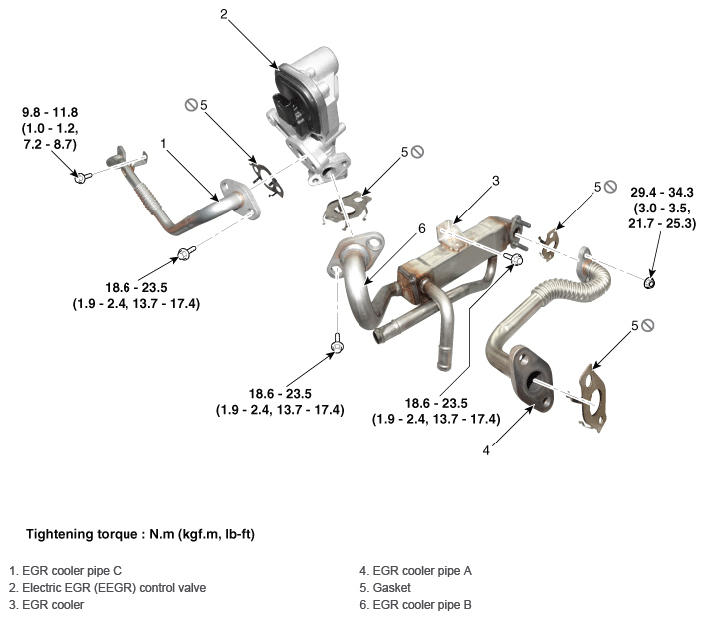

Fig 1: EGR Cooler Components Location With Torque Specification
G12725732Courtesy of HYUNDAI MOTOR AMERICA
