Components And Components Location: Components

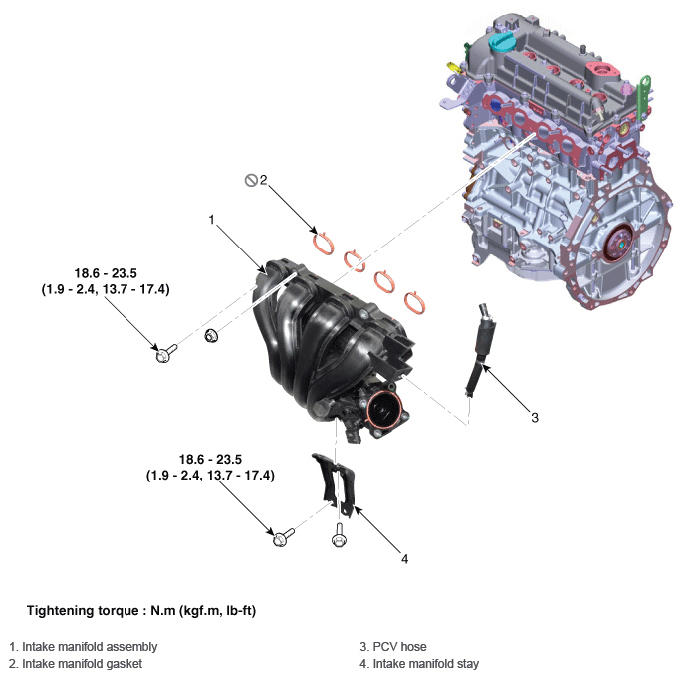

Fig 1: Intake Manifold Components Location With Torque Specification
G12725717Courtesy of HYUNDAI MOTOR AMERICA
