Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

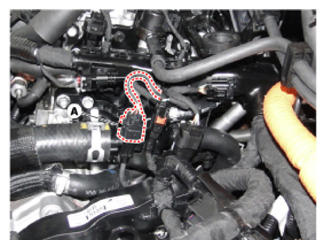

  2. Disconnect the crankshaft position sensor connector (A).
    G12727141Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the engine room nuder cover.

    (Refer to "ENGINE ROOM UNDER COVER ")

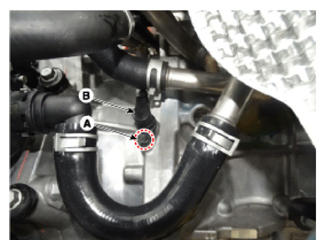

  4. Remove the crankshaft position sensor (B) after loosening the bolts (A).
    G12727142Courtesy of HYUNDAI MOTOR AMERICA
