Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the air cleaner assembly
(Refer to "AIR CLEANER ")

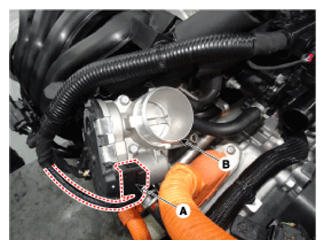

- Disconnect the ETC module connector (A).
- Remove the ETC module (B) from the engine after loosening the bolts.
