Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly
(Refer to "AIR CLEANER ")

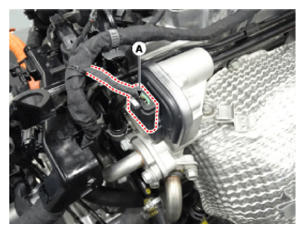

- Disconnect the EGR control valve connector (A).
- Remove the EGR cooler pipe.
(Refer to "EGR COOLER ")

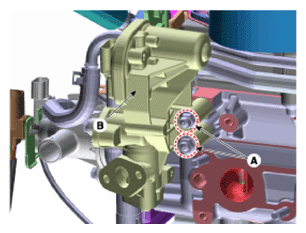

- Remove the EGR control valve (B) after removing the mounting bolt and nut (A).
