[Bank 1/Sensor 2]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the connector (A), and then remove the sensor (B).

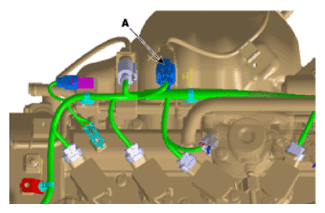

    G12727161Courtesy of HYUNDAI MOTOR AMERICA

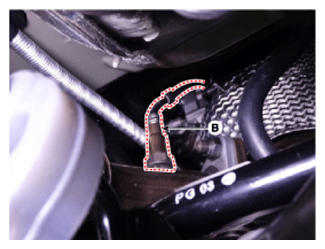

    G12727162Courtesy of HYUNDAI MOTOR AMERICA
