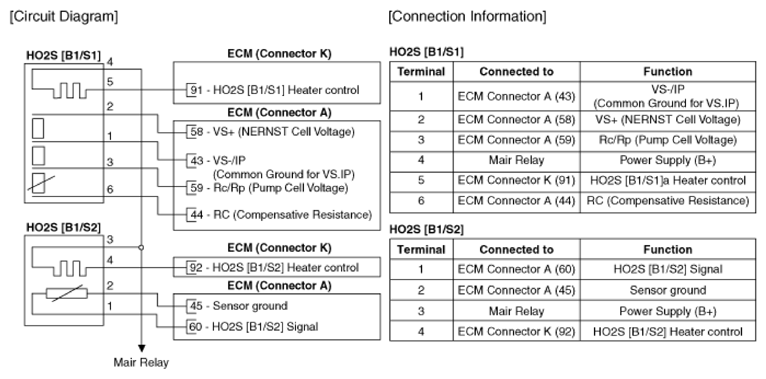

Home › Hyundai › 2018 › Ioniq Plug-In Hybrid › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram › Notes
