Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery (-) cable.

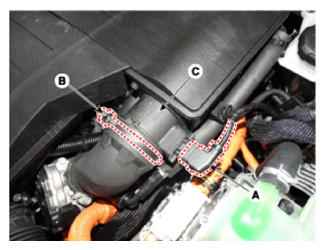

  2. Disconnect the mass air flow sensor connector (A) and the installation clamp (B).
  3. Remove the mass air flow sensor (C).
    G12727125Courtesy of HYUNDAI MOTOR AMERICA
