Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly
(Refer to "AIR CLEANER ")

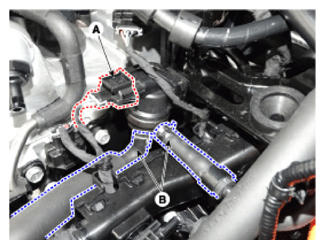

- Disconnect the purge control solenoid valve connector (A).
- Disconnect the vapor hose (B) from the purge control solenoid valve.
- Remove the purge control solenoid valve.
