Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

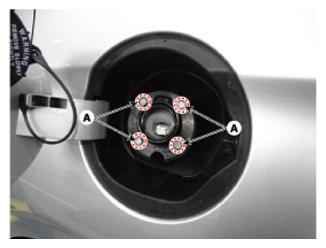

  2. Open the fuel filler door and then remove the filler-neck installation screw (A).
    G12727283Courtesy of HYUNDAI MOTOR AMERICA
  3. Lift the vehicle.
  4. Remove the rear-LH wheel, tire, and the inner wheel house.

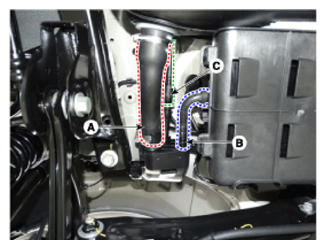

  5. Disconnect the fuel filler hose (A) and the leveling hose (B).
  6. Disconnect the vent tube quick-connector (C).
    G12727284Courtesy of HYUNDAI MOTOR AMERICA

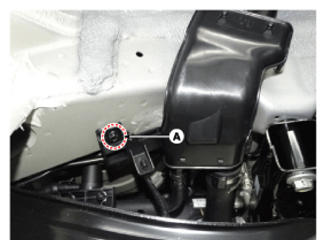

  7. Remove the filler-neck assembly from the vehicle after removing the bracket installation bolt (A).
    G12727285Courtesy of HYUNDAI MOTOR AMERICA
