Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the rear seat cushion.
(Refer to Body - "REAR SEAT ASSEMBLY ")

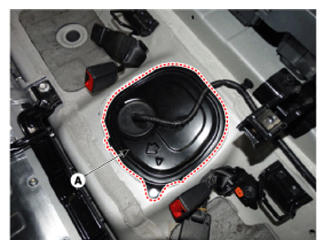

- Remove the fuel pump service cover (A).NOTE:
- When reinstalling a protective cover for a fuel pump, remove the existing butyl tape and apply a new one.
- Before assembling the protective cover, ensure that the temperature of the butyl is about 30°C using a hair dryer or a heat gun.

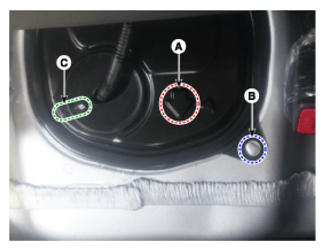

NOTE:- When installing the protective cover for the fuel pump, pay attention to the installation direction of the grommet and the protective cover.
- The arrow (A) should be in the forward direction of the car.
- Align the bulging part of the vehicle body (B) with the hole of the protective cover.
- Align the bulging part of the grommet (C) with the bulging part of the protective cover.

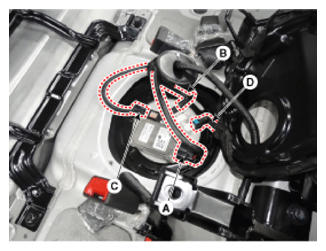

- Disconnect the fuel pump control module connector (A).
- Disconnect the fuel pressure sensor connector (B).
- Disconnect the fuel tank pressure sensor connector (C).
- Disconnect the fuel feed tube quick-connector (D).

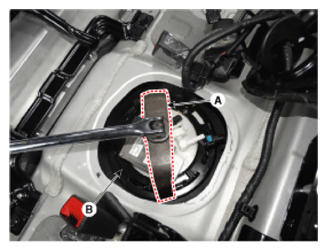

- Remove the fuel pump locking ring (B) with SST (A) [SST.: 09310-F3100].NOTE:
- When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
- When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
- Remove the fuel pump (A).
