Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the front tires straight-ahead.
  2. Turn the ignition switch OFF.
  3. Disconnect the battery negative cable from the battery and wait for at least three minutes before beginning the work.
  4. Connect the clock spring harness connector and horn harness connector to the clock spring.
  5. Factory setting for the clock spring is neutral.
    1. If white cable is visible through the product's 10 O' Clock Neutral Check Window, then the spring is at neutral.
    2. If white cable is not visible through the product's 10 O' Clock Neutral Check Window, then manually adjust the setting to neutral.
    Neutral Check Window: Normal Neutral Check Window: Fault
    G13187554Courtesy of HYUNDAI MOTOR AMERICA
    G13187555Courtesy of HYUNDAI MOTOR AMERICA
    White cable is visible through 10 O' Clock Neutral Check Window White cable is not visible through 10 O' Clock Neutral Check Window

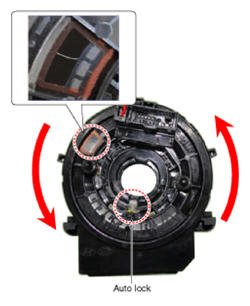

  6. Clock spring manual neutral setting procedure.
    1. Press the Auto Lock at 6 O' Clock and turn clockwise 3 rotations.
      G13187556Courtesy of HYUNDAI MOTOR AMERICA
    2. Press the Auto Lock at 6 O' Clock and turn counter-clockwise 3 rotations.
    3. If white cable is visible through the 10 O' Clock Neutral Check Window, then the spring is set to neutral.
      G13187557Courtesy of HYUNDAI MOTOR AMERICA
  7. Install the steering wheel column shroud and the steering wheel.

    (Refer to Steering System - "MDPS COLUMN AND HOUSING ")

  8. Connect the Driver Airbag (DAB) module connector and horn connector, and then install the Driver Airbag (DAB) module on the steering wheel.
    NOTE:
    • When install the Driver Airbag (DAB) module, Fix the horn wire and DAB inflator wire tightly with wire clip (A).
      G13187558Courtesy of HYUNDAI MOTOR AMERICA
  9. Connect the battery negative cable.
  10. After installing the airbag, confirm proper system operation:
    • Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
    • Make sure horn button works.
