Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the driver airbag module by putting in a flat tool (Ø5mm) into the guide hole and then press the spring.
    G13187546Courtesy of HYUNDAI MOTOR AMERICA

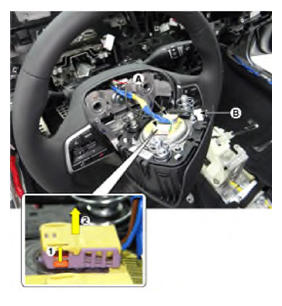

  3. Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).
    G13187547Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
  4. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

  5. Using a screwdriver or remover, separate the steering column shroud upper panel (A) from the steering column shroud lower panel.
    G13187548Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the steering column shroud lower panel (A) after loosening the screws.
    G13187549Courtesy of HYUNDAI MOTOR AMERICA

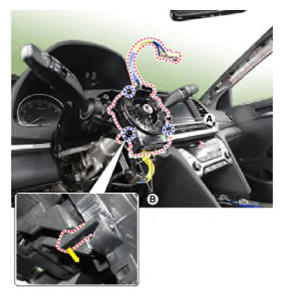

  7. Remove the clock spring (A) after disconnecting the clock spring connectors (B).
    G13187550Courtesy of HYUNDAI MOTOR AMERICA
