Components And Components Location
›
Components
Components And Components Location: Components

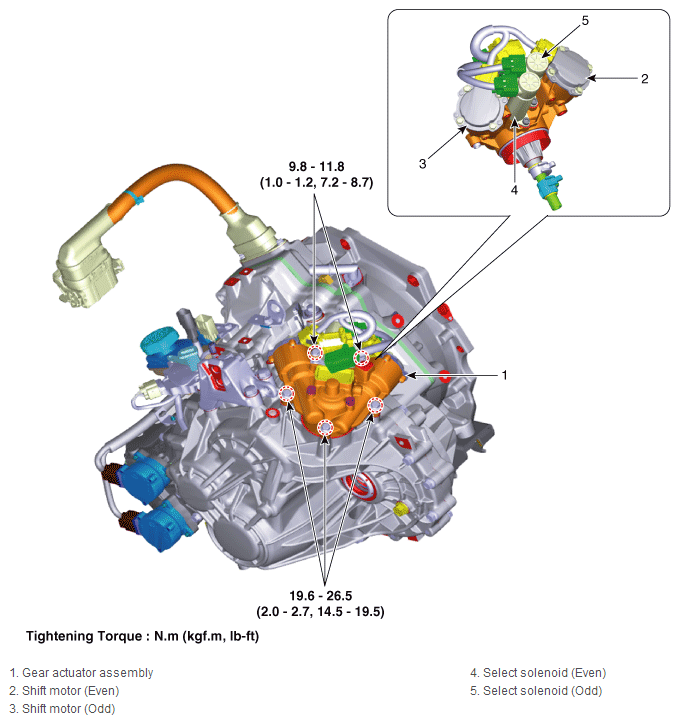

Fig 1: Gear Actuator Assembly Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
