Repair Procedures: Installation

1. To install, reverse the removal procedure.

NOTE:

• Check the details below before installing the gear actuator assembly.

1. Check that the gear actuator is placed in the "neutral" state.
2. Check the assembled state of the O-rings (A).

   Courtesy of HYUNDAI MOTOR AMERICA

3. Apply gear oil to the surface of O-rings.
4. Check the assembled state of the dowel pins (A).

Courtesy of HYUNDAI MOTOR AMERICA

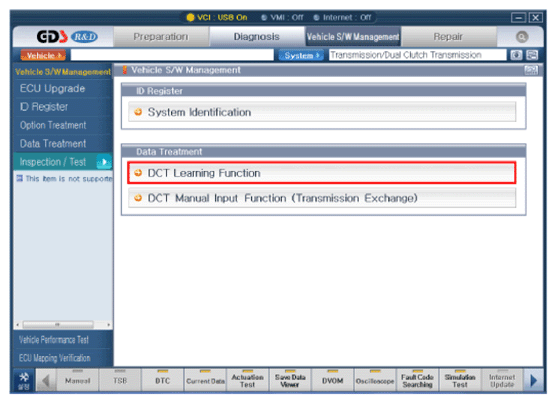

• Perform the gear actuator learning procedure using the GDS after replacing the gear actuator assembly.

Courtesy of HYUNDAI MOTOR AMERICA
