Components And Components Location: Components

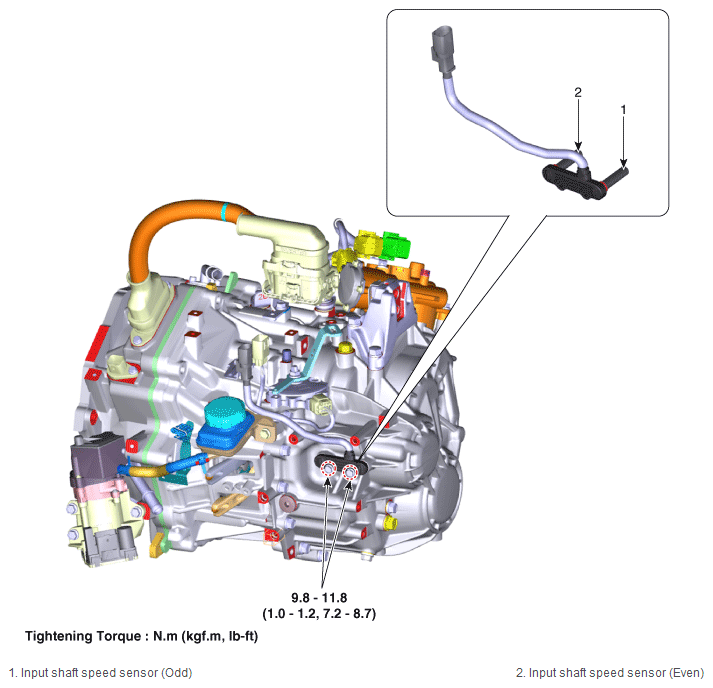

Fig 1: Input Shaft Speed Sensor 1 Components Location With Torque Specification
G12727489Courtesy of HYUNDAI MOTOR AMERICA
