Components And Components Location: Components

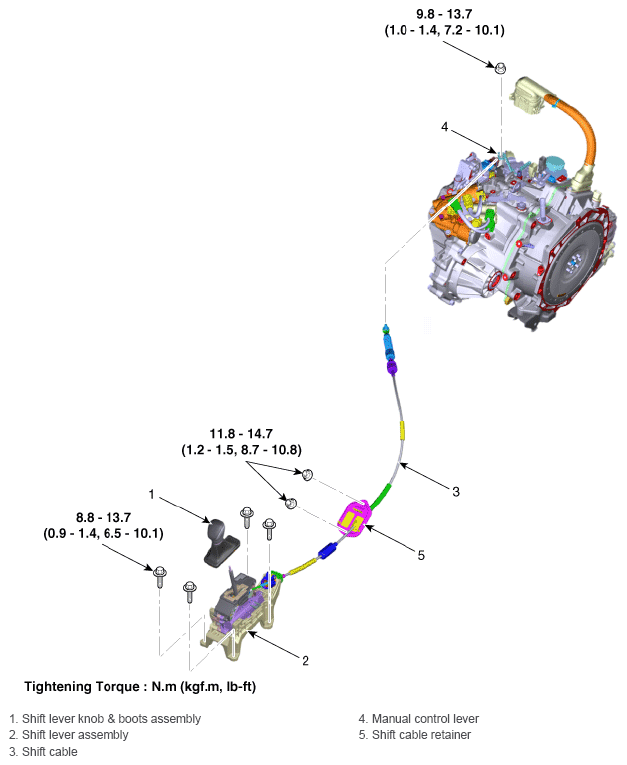

Fig 1: Shift Cable Components Location With Torque Specification
G12727525Courtesy of HYUNDAI MOTOR AMERICA
