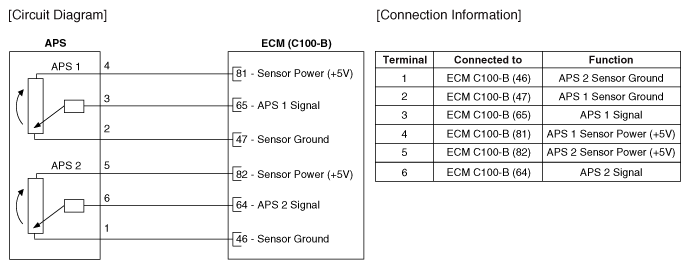

Home › Hyundai › 2018 › Santa Fe Sport Base, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.4L › Accelerator Position Sensor (APS) › Schematic Diagrams › Circuit Diagram
