Components And Components Location: Components

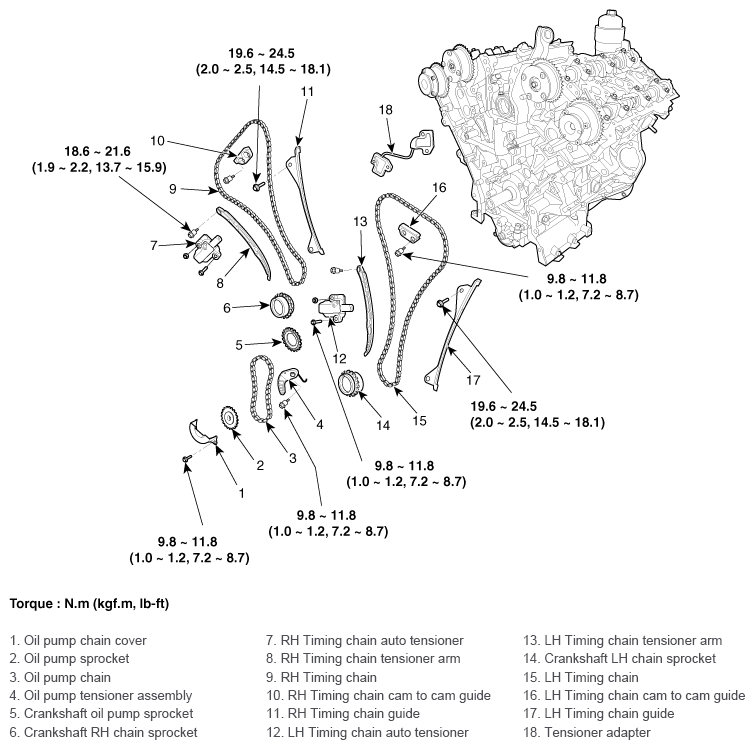

Fig 1: Timing Chain Components With Torque Specifications
G12032729Courtesy of HYUNDAI MOTOR AMERICA
