Compensation Requirement and Procedure

WARNING: This page is about a different variant/trim than selected.

Simultaneous replacement of 4WD ECU (Controller) and coupling
- Does not require compensation.
Replacement of coupling only

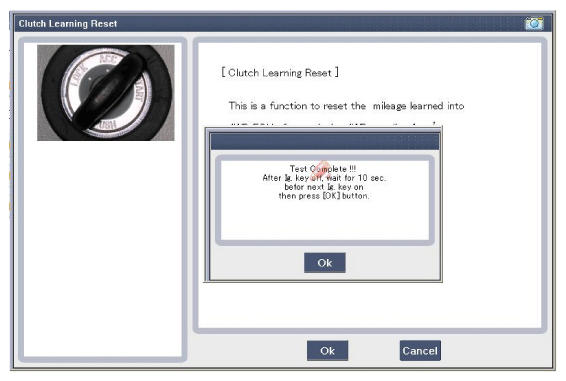

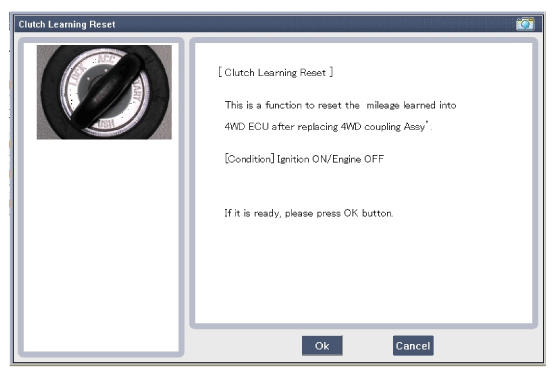

- Reset the 4WD ECU's (Controller) clutch learning.
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Replacement of 4WD ECU (Controller) only

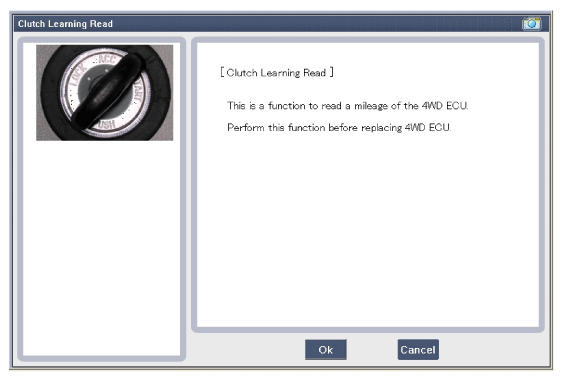

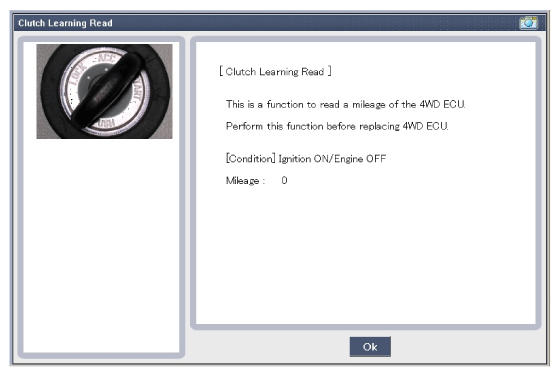

Before replacement: Check the ECU's clutch learning.

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

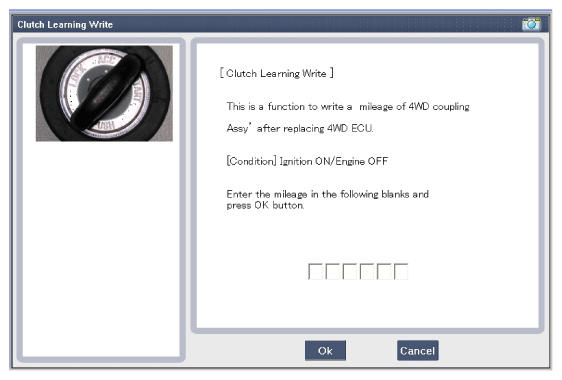

After replacement: Enter the original ECU's clutch learning into the replacement ECU.

Courtesy of HYUNDAI MOTOR AMERICA
