Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

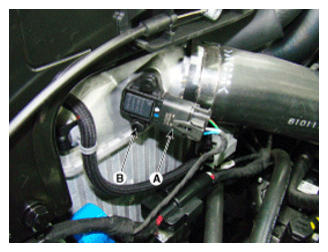

  2. Disconnect the boost pressure sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor.
G12637523Courtesy of HYUNDAI MOTOR AMERICA
