Home › Hyundai › 2018 › Sonata Hybrid Limited › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System (HEV) › Components And Components Location › Components Location › [Transaxle Installation Component]

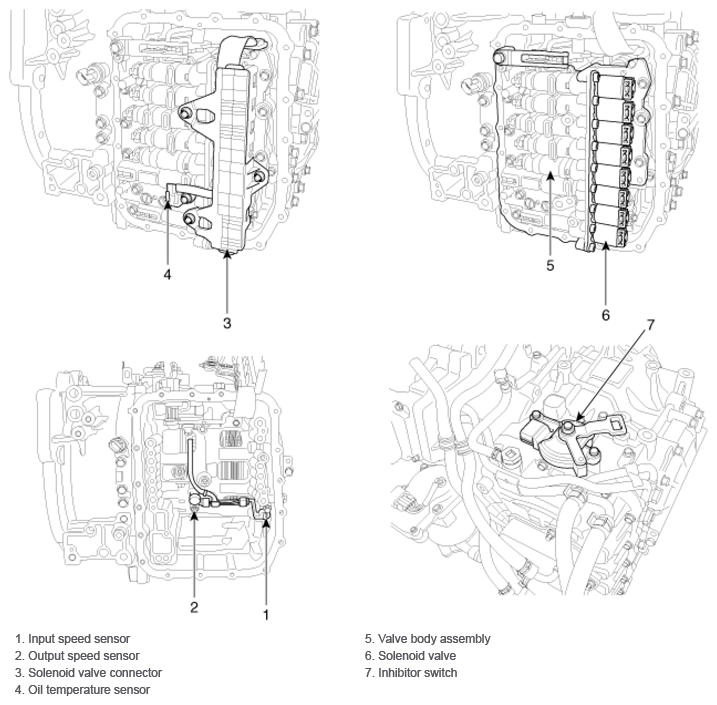

[Transaxle Installation Component]

G12763207Courtesy of HYUNDAI MOTOR AMERICA
