Repair Procedures: Removal

Air cleaner assembly and air duct.
(Refer to "AIR CLEANER ")
Battery and battery tray.
(Refer to REMOVAL AND INSTALLATION ).

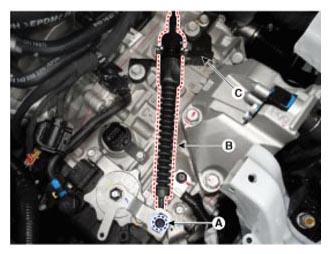

Remove the nut (A) from the manual control lever.
Remove the shift cable (B) from the bracket (C) at transaxle side.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console assembly.
(Refer to "FLOOR CONSOLE ")

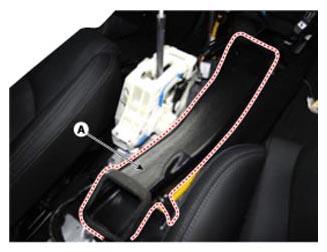

Remove the air duct (A).

Courtesy of HYUNDAI MOTOR AMERICA

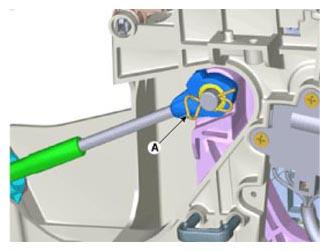

Remove the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

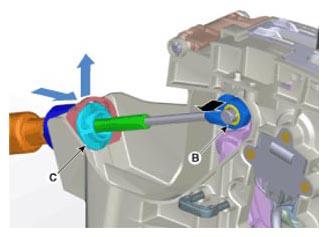

Disconnect the cable eye end (B) from the shift lever.
Disconnect the cable socket (C) from the shift lever.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the airbag module.
(Refer to "AIRBAG MODULE ")

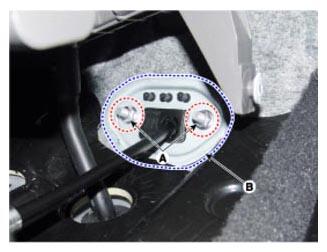

Disconnect the shift cable retainer (B) after removing the mounting nut (A).
Remove the shift cable by pulling it toward the interior.
