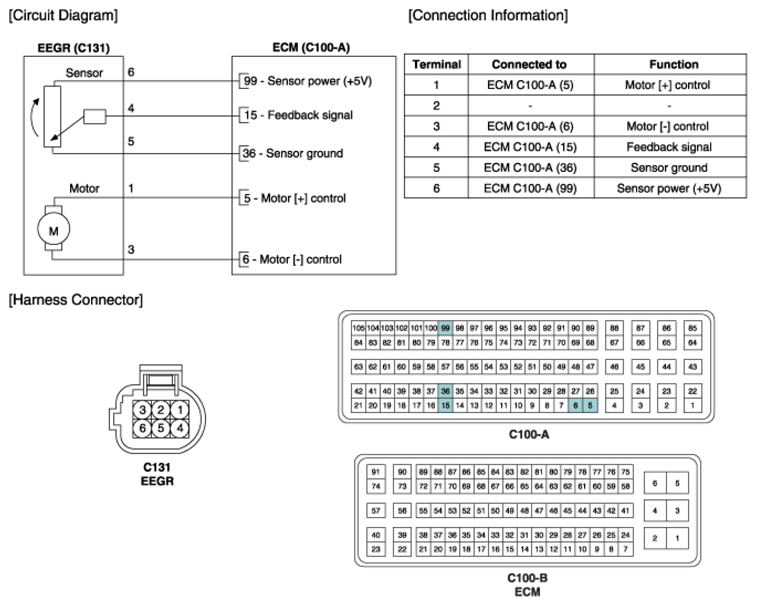

Home › Hyundai › 2018 › Sonata Hybrid SE › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (HEV) › Electric EGR Control Valve › Schematic Diagrams › Circuit Diagram
