Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

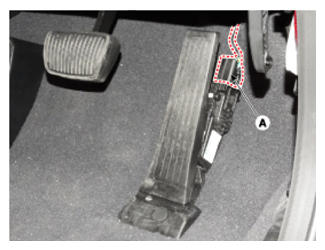

  2. Disconnect the accelerator position sensor connector (A).
    G12639087Courtesy of HYUNDAI MOTOR AMERICA

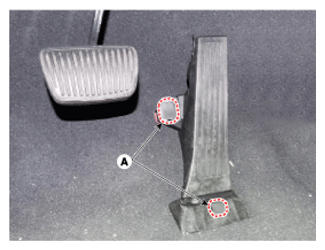

  3. Remove the mounting cap (A).
    G12639088Courtesy of HYUNDAI MOTOR AMERICA

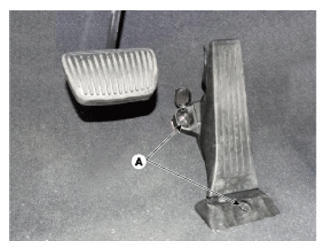

  4. Remove the installation bolt (A), and then remove the accelerator pedal module.
    G12639089Courtesy of HYUNDAI MOTOR AMERICA
